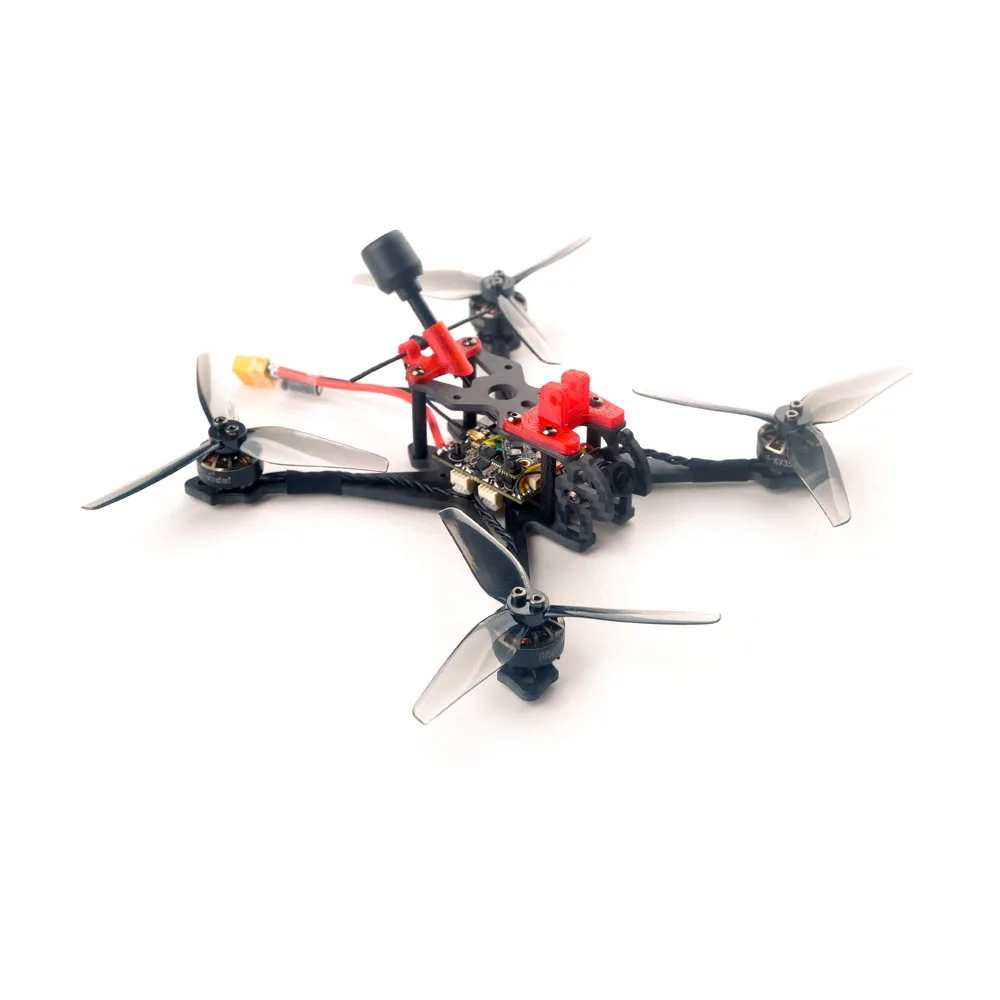

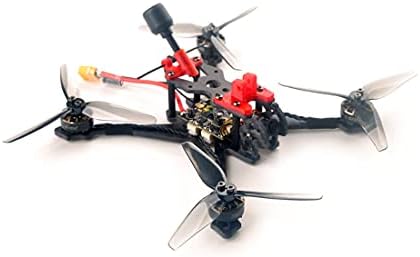

Happymodel Crux35 ELRS V2 Analog / Crux35 Digital HD 150mm 3.5 Inch 4S Ultralight FPV Racing Drone BNF w/ CADDX Nebula Pro / ANT 1200tvl Camera
Last updated on September 18, 2024 8:39 AM$159.99
Compare Prices of Happymodel Crux35 ELRS V2 Analog / Crux35 Digital HD 150mm 3.5 Inch 4S Ultralight FPV Racing Drone BNF w/ CADDX Nebula Pro / ANT 1200tvl Camera
2 Pairs HQProp Micro Whoop 31MMX2 31mm 2-blade Poly Carbonate Propeller 1mm Shaft for Happymodel Mobula6 ELRS FPV Racing
NOTICED:
SPI ELRS version Crux35/Crux35 HDZERO/Crux35 HD were discontinued. The new ELRS V2 version comes with CrazyF411 ELRS AIO flight controller built-in UART ExpressLRS receiver.
Feb. 11th, 2023
Introduction:
CRUX35/CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
The HD version is equipped with CADDXFPV Nebula and Vista HD image transmission system. The analog version is equipped with CADDXFPV Ant ant camera.The receiver version can be SPI ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 and Crux35 HD.
Features:
Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
HD video transmission and analog video transmission are optional
Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver
High efficiency EX1404 power system
Can be equipped with Naked Gopro or SMO4K
Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
Specifications: ( Manual of ELRS Version / Frsky Version)
Brand: Happymodel
Model: Crux35 Analog / Crux35 HD
Wheelbase: 150mm
Weight: 87g ( Analog); 108g ( HD)
Size: 130mmx130mmx45mm(without propellers)
Version Optional: Analog / HD
Receiver optional: UART ExpressLRS 2.4GHz (ELRS 2.4G RX) / SPI Frsky D8/D16 (S-FHSS compatible)
Camera option: HD version Nebula+Vista
Analog version Ant+OVX303 VTX
Flying time: 9min~15min 4s 750mah battery
|
Motor |
Mode: EX1404 |
|
Propellers |
Propeller Diameter: 3.5 inch |
|
Flight controller (ELRS Version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
|
Flight controller (Frsky version) |
Model: CrazybeeF411 FRSKY MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
|
Onboard 4in1 ESC |
MCU upgraded to EFM8BB21 Current: 5A continuous peak 6A (3 seconds) |
|
Onboard UART ExpressLRS 2.4GHz Receiver (ELRS 2.4G Receiver version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
|
Onboard SPI Frsky 2.4GHz receiver ( SPI Frsky Receiver Version) |
SPI BUS receiver Dual antenna |
|
Caddx FPV Digital HD Camera Nebula Nano Kit (Digital HD version) |
Weight(camera included]: 24g Antenna: 2.3g Dimensions: Vista Kit 30×29×13mm Camera 14×14×21mm Operating Frequency: 5.725-5.850GHz Transmitter Power[EIRP]: FCC/SRRC/MIC:<30dBm CE:<14dBm Min.latencylend-to-end) 720p 60fps:32ms Max.Transmission Distance FcC/SRRC: 4km CE:0.7km lnput Power: 7.4-26.4V Power Output: 25mW/200mW/500mW/700mw Goggles : Work with DJl goggles Camera Sensor: 1/3”CMOS Lens: 2.1mm,f/2.1 Shutter: Rolling shutterFOV: 142°(D);122°(H);75°(V) LHCP antenna |
|
Caddx ANT 1200tvl camera (Analog version) |
Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: [email protected] Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
|
OVX303 5.8Ghz VTX (Analog version) |
Model: OVX303 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna |
Recommended(Not Included):
4S: 750mah Battery
Package Included:(Optional)
Analog
1x Crux35 Frame
1x Analog FPV Camera Caddx Ant
1x Happymodel OVX303 5.8G analog VTX
4x Happymodel EX1404 KV3500 brushless motor
1x HQProp T3.5X2X3Grey (4cw+4ccw)
1x Screw Driver
1x Buckle for battery
Option1: CrazyF411 ELRS FC with UART ELRS
Option2: CrazyF411 FRSKY FC SPI Frsky
HD
1x Crux35 Frame
1x CaddxFPV Digital HD Camera Nebula Nano Kit
4x Happymodel EX1404 KV3500 brushless motor
1x HQProp T3.5X2X3Grey (4cw+4ccw)
1x Screw Driver
1x Buckle for battery
Option1: CrazyF411 ELRS FC with UART ELRS
Option2: CrazyF411 FRSKY FC SPI Frsky
